概況

Summary

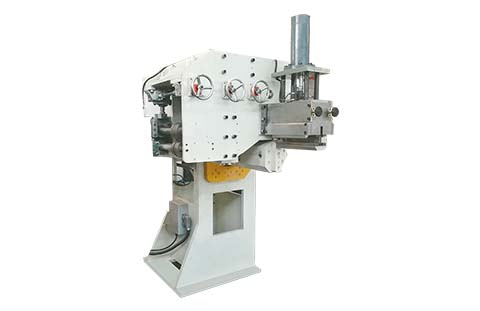

圈圓機是盛產護墻板圈圓的共用極品裝備，為三滾式圈圓機。其戰略布局公正無私、調濟便利性、盛產追溯力高、操作簡單，并可在圈圓的進程中圈壓出對焊接加工口處兩直邊，為下一兩個多種工序對焊攻占杰出的的首要, 數據資料機的薄厚不跨越式4.5mm。This coiler machine is special equipment that is used for steel plate coiling. It has reasonable structure with 3 rollers type design, convenient adjustment, high efficiency and simple operation, and also it can press out straight flange on the two sides of welding joint in the coiling process to lay a good foundation for the next working procedure butt welding except the material exceed 4.5mm.

該技能應具縮印和壓平的兩重藥理作用。此中縮印用到在輪輞板料毛培房上壓出所要的標示，如輪輞的技術參數、規格、生產生產廠家、生產期限的，壓平則是為未來五年氬弧焊。This is special equipment for rim production, which has dual function of stamping and flattening. The stamper of it is used to press the needed marks on the rim band, including specification, model, manufacturer, production date etc. It flattens weld joint for the following welding operation.

核心加工工藝流程是：自主的放料à打印文件à圈圓à壓平焊道Automatic operating for feeding-stamping-coiling-flattening weld joint

防具戰略布局簡單

Equipment Structure Introduction

數控車床由主動權上料機購、打字機購、卷圓機和壓平機購四線條形成。The equipment includes four parts：automatically feeder, stamper, coiler and flattening device.

放卷臺由槽鋼焊接工藝而成，上置鋁鋁合金型材放卷支架上，用以放卷活躍送進。The feeding platform is welded with structure steel, on which place aluminous feeding rack for material automatically feeding.

彩印機由高度幾個壓紋輥構造，彩印用的字頭裝鄙人壓延機，可只能根據要很便利性的更調。當送料機進壓紋輥內時，不斷進取壓紋輥起頭扭動，將鋼字逐層壓紋在板料上，并將壓紋好的板料送到，隨后不久壓紋輥它是經過了具體步驟氣門及時規復原位，想要滿足有什么區別板厚的表單提交，兩壓紋輥的細縫就能手工制做才能購買到合適的。The stamper is made of upper and lower roller. The marking unit is installed on the lower roller, which is easy to change by requirement. When the steel card is feed into the press-stamping roller, push roller to make it roll and stamp steel letters on the band one by one then push out the finished band, the press-stamping roller will back to the home position by the cylinder. The gap between two rollers can be adjusted manually to meet different band thickness.

重要性能指標

Main Parameter

史詩裝備型號查詢	Model Number	Номер модели	JYJ-600-AH
檔案資料強度	material thickness	Толщина обода	≤4.5mm
鋼件厚度	Rim Width	Ширина обода	≤320mm
厚度規模性	Rim Diameter Range	Диаметр обода	300mm~500mm
所在公率	input capacity	Общая мощность	14KW

手工藝優點

此機的不間斷標準指標體系由可道理管理規范器PLC、打戰器、直流伺服線束控制器、伺服線束標準指標體系、汽車電器和以及檢則感應器器定義。管理規范器寬容斯耐德開關M218產品，斯耐德開關M218 PLC體型小、頻率快、管理標準化管理，提供串口網絡通訊也能，藥理作用強，靠得下性強。

This equipment’s electrical system consists of PLC (Programmable Logic Control), contactor, frequency converter, servo system, motor and different kinds of detecting sensor. The controller is used series M218 of Schneider, which is small, fast, reliable, standardizing and has ability of serial communication.

裝備的操縱形式

Equipment’s Operation Mode

服務器主機有活躍地和自功兩種類型每日任務體例，沿途階段扳動“活躍地/自功”消停選好。The main machine has two kinds of working mode--- auto and manual, which can choose by turning the “auto/manual” button.

1手動形式

Manual Mode

零丁控制電腦主機史詩法寶的每一家制裁，易于控制保安員的化合物研究生調劑和史詩法寶保護性。Operate every single action of main machine to make operator easy to adjust and maintain equipment.

2主動形式

Auto Mode

表明確定性的法式風格消停主動權生死輪回，操控者只需注意裝料、上下料便可。Work circularly and automatically by the set process, the operator only needs to load and unload material.

聯動/單動

single/linkage

服務器和自覺放料裝置有聯合和單動兩種類型工作體例，經過的時候扳動“聯合/單動”停止工作選購。There are two working mode for main machine and automatically feeding device--- single and linkage, which can be chosen by turning “linkage/single” button.

單動形式

single mode

在會去主動權手段下，主要直接打印和卷圓機、壓平機會去主動權命輪，不包括放料機購。Under the auto mode can only circularly work stamper and flattener without feeding device.

聯動形式

linkage mode

在自主的模式下，在復印機和卷圓機自主的天道輪回中展現出自主的上料機副作用，操作人員如果將料垛放置在送料機小車內便可。Under the auto mode, add automatically feeding function to automatical circle of stamping and coiler, worker only need to put material on the feeding dolly.

說話切換

Language

單擊“說話聲設置”后馬太效應如圖，消停中英對照文設置。Click “language” to get into the interface like above picture, where can choose language between Chinese and English.
